Richauto AutoNow A11S A11E DSP Controller System for 3 Axis CNC Router
Product Name:
Richauto AutoNow A11S A11E DSP Controller System for 3 Axis CNC Router
No. :
Richauto-AutoNow-A11S / Richauto-AutoNow-A11E Original Product
:
:

Richauto Autonow A11S is a very popular motion controller which is ideal for all types of 3 axis cnc router machinesComparted with other cnc controllers, it is much easier to operate. It is not a difficult job even for beginners. Another advantage of this cnc system is that it does not occupy computer source because it works indenpently, no need via a computer. While, if choose Mach 3 controller or NC stuido, you need get a computer for it and use computer to operate the machine.
richauto autonow a11s a11e dsp controller system for cnc

Similar alternative product is WEIHONG NK105G2 NK105G3

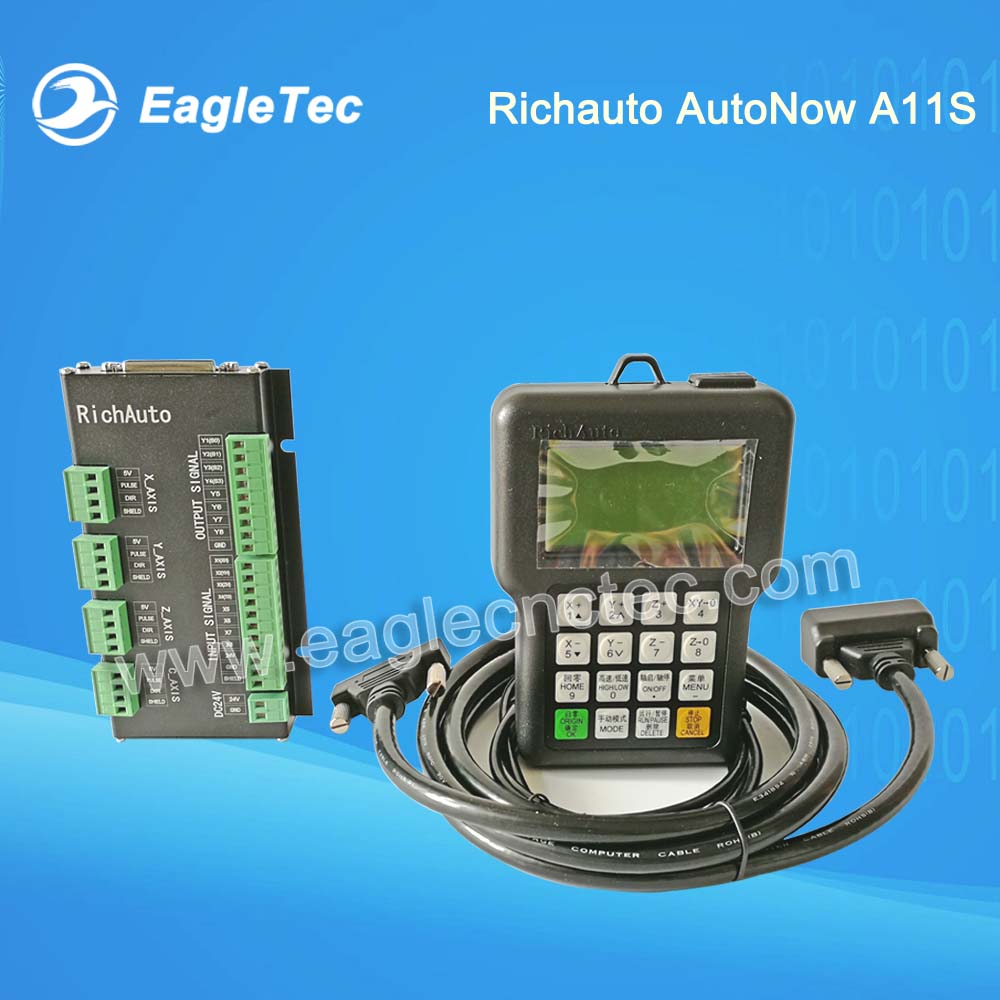

Complete set RichAuto AutoNow A11S A11E contains four items totally, they are :

hand-held motion controller 1 piece

interface board 1 piece

50-pin data transmission cable between hand-held controller and interface board 1 piece



USB communication cable between computer and hand-held controller 1 piece
richauto autonow a11s a11e full set
RichAuto AutoNow A11S A11E Description

1) DSP is short for digital signal processing.

2) AutoNow A11S A11E is updated version of RZNC-0501 HBBC HBBE

3) It is a good controller for basic cnc router machines.

4) With the function of data backup, it is easy to do maintenances in case if parameter changed by mistake.

5) RichAuto A11S A11E support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Type3, Art cam, UG, Pro / E, Master CAM, Cimatron, Wentai etc.

6) Provide with power-down protection. Instantaneous power processing system to automatically save the current processing of information (file name, current line number processing, processing speed, spindle threshold), when power again machine moves back, the system automatically prompts the user to restore the processing before power down, the processing operations become more humanity.

7) Support breakpoint memory, file selection, processing. Save 8 different breakpoint processing information.

8) Support online adjust spindle operating frequency. The spindle frequency from 0 to maximum frequency is divided into 8 thresholds; 1 - 8 threshold can be processed directly adjust up and down without suspend processing.

9) Support adjust speed ratio online. Users can adjust the speed ratio, to adjust the processing speed and empty running speed, speed ratio values from 0.1-1, Ascending or descending per 0.1 numerical.

10) Simply manual operate mode. In manual mode, the system provides three kinds of sports concluding continuous, step (crawl), distance, manual operation became more simple and convenient.

11) Built-in 512 M memory.

12) Comes with USB communications port, file transfer efficiency can be directly read U disk, card reader file, Plug and Play.

13) Self-test function, the system comes with I / O port signal detection capabilities, ease of remote maintenance.

13) Processing with high-speed and smooth, support high subdivide, make sure processing with high accuracy and high speed.

14) Unique in Chinese-English to show double-interface, can be realized in switching Chinese and English show online.

You can get all cnc router parts by one stop shopping here. More payment way acceptable includes Western Union, Paypal or T/T.

Please watch the video below to understand better.

To get the latest RichAuto AutoNow A11S A11E price, please inquire now.
