Microstep Driver Leadshine MA860H DM1182 Stepper Motor Driver
Product Name:
Microstep Driver Leadshine MA860H DM1182 Stepper Motor Driver
No. :
MA860H, DM1182, DMA860H
:
:

Leadshine MA860H is a high performance microstep driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different stepper motors, the driven motors can run with smaller noise, lower heating, smoother movement. It is suitable for driving 2-phase and 4-phase Nema motors
Another leadshine driver you may have interest: Leadshine M542
Looking for CWD860H cnc router stepping driver? Please click stepping driver CWD860H

Tips: Another good choice on driver is YAKO stepper motor driver

Features of MA860H stepper driver:

1) Good high speed performance

2) Output voltage is Max. 80VAC

3) Output current is Max. 7.2A

4) Self-adjustment technology

5) Pure-sinusoidal current control technology

6) Pulse input frequency is up to 300 KHz

7) TTL compatible and optically isolated input

8) Automatic idle-current reduction

9) 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev

10) Suitable for 2-phase and 4-phase motors

11) Support PUL/DIR and CW/CCW modes

12) Short-voltage, over-voltage, over-current and short-cicuit protection

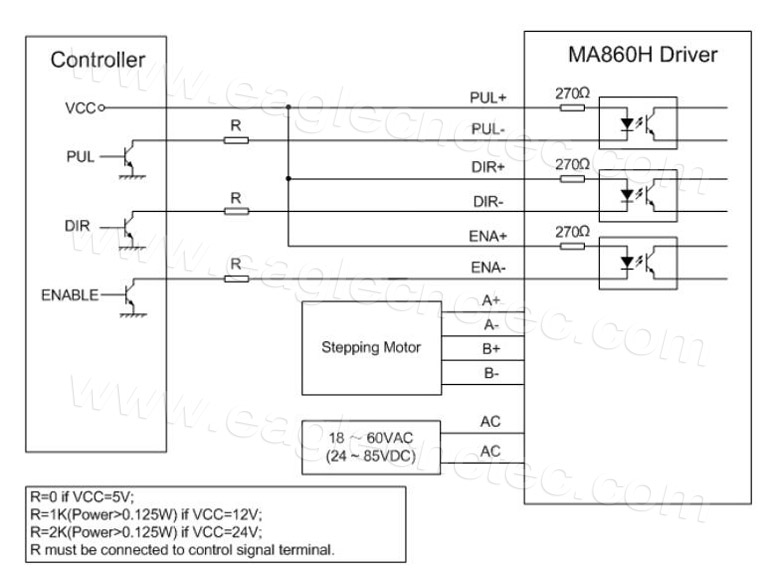

Wiring diagram of MA860H leadshine driver


leadshine ma860h wiring manual

Leadshine DM1182 is a high voltage, versatility fully digital stepper driver based on a DSP with advanced control algorithm.  It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor auto-test and parameter auto-configuration technology offers optimum responses with different stepper motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers on the markets. Its unique features make the DM1182 an ideal solution for applications that require low-speed smoothness.



Features of DM1182 driver:

1) Extra-low motor noise offers excellent quietness

2) Anti-Resonance, provides optimum torque and nulls mid-range instability

3) Self-test and Auto-configuration technology, offers optimum responses with different motors

4) Microstep resolutions programmable, from full-step to 102,400 steps/rev

5) Supply voltage is Max.150 VAC

6) Output current programmable, from 0.5A to 8.2A

7) Pulse input frequency is up to 200 KHz

8) Automatic idle-current reduction

9) Supports PUL/DIR and CW/CCW modes

Wiring diagram of Leadshine DM1182

leadshine dm1182 manual
