Nema 34 bipolar stepper motor for cnc router
Product Name:
Nema 34 bipolar stepper motor for cnc router
No. :
85BYGH450A, 86BYGH450A, 86BYGH450B, 85BYGH450B, FL86STH118A-22-CLF
:
:

450A and 450B are the most popular bipolar stepper motor models which are used on cnc wood router machines. They are two models of NEMA 34 stepping motor. 450A is usually used on small light duty machines like 6090 cnc router; while 450B is widely used on big machines like 1325 cnc routing machine and wood door carving machine1530. Besides the above two models, more models of stepper motors can be provide for you also.
nema 34 bipolar stepper
Models we can provides include 85BYGH450A/86BYGH450A, 85BYGH450B/86BYGH450B, 85BYGH450C/86BYGH450C, FL86STH118A-22-CLF and more.

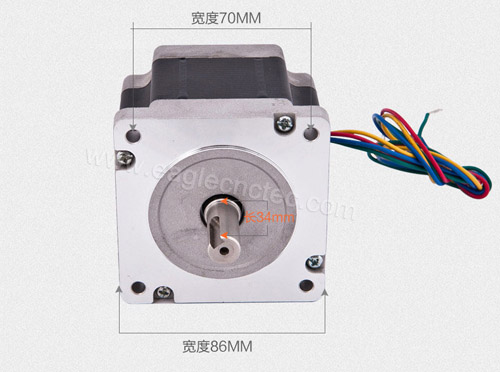

Features of Nema 34 Step Motor Model. 85BYGH450A /86BYGH450A
bipolar stepper motor
stepper motor for cnc router

Currency:   4A

Step Angle 1.8°

Phase:  Two

Holding Torque: 21kg/cm =2N.M = 285 OZ-IN

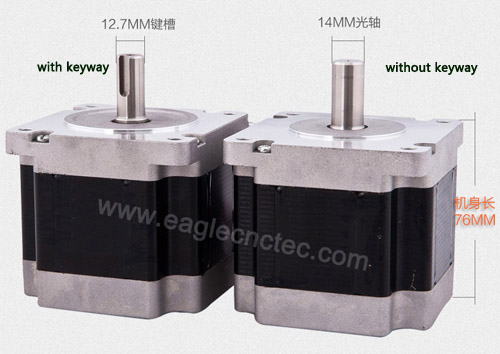

Shaft Diameter: 12.7 / 14mm

Net Weight: 2.4kg
Gross Weight: 3.0kg

Features of Bipolar Stepping Motor Model. 85BYGH450B /86BYGH450B
nema 34 stepper motor
high torque stepper motor

Currency:   5A

Step Angle 1.8°

Phase:  Two

Holding Torque: 60kg/cm =5.88N.M =840 OZ-IN

Shaft Diameter: 12.7 / 14mm

Net Weight: 3.5kg
Gross Weight: 4.2kg

Buy all cnc spare at one stop here, welcome your inquiry. Our team is ready for you. Payment can be made via Western Union, Paypal, and Bank Transfer.
