Computerised wood carving machine EagleTec-N2030MS8 is a router machine for big quantity wood carving jobs specially. It is commonly used for European style furniture production in furniture factories. In order to meet the production requirement of solid wood fast carving, EA-N2030MS8 is adopt configuration like eight pieces high torque constant torque water cooling spindle, Yaskawa or Delta full servo feeding system and computerized NC studio controller.

Want to see how it works? Please see the video with this URL on Youtube:

https://youtu.be/Pk3Lm9PXqWY

Materials best for multi spindle wood carving machine

Solid wood, MDF, acrylic, plastic and PVC.

Application of computerized wood carving cnc router machine

Wood carving, European style furniture production, slat wall production etc.

Main Configuration of wood carving machine

1) Constant torque water cooling spindle with big torque

2) Yaskawa or Delta driving system

3) Computerized NC studio control system

Features of computerized carving machine

1) Big torque water cooling spindle is ideal for wood carving jobs cause wood carving jobs always take very long time to finish; while water cooling is better on cooled effect an air cooling in long time run.

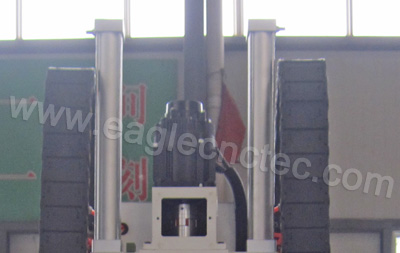

2) The Z-axis has a dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning.

3) Full servo driving system offers fast feeding speed, smooth run and quiet operation.

4) Eight spindles’ design is ideal for mass production task, it can finish 8 pieces of job in one time.

5) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw. Perfect connection between ball screw shaft and driving motor shaft allows Z axis run in long term without trouble.

6) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides allow for higher feed speeds and a better quality of cut.

7) The Y-axis uses a dual drive, one for each side of the gantry.

8) Software: ArtCAM, Type 3 and UcanCAM.

9) Has the function of re-carving after break point and power failure.

10) All the linear guides are centrally lubricated from a central system.

Technical Parameter of computerized wood carving machine

Working Stroke for each spindle | 250x3000x300mm – 8 pieces

Max. Idle Speed | 45,000mm / min

Max. Working Speed | 12,000mm /min

Spindle | 2.2kw, constant torque, water cooling, 0-24,000 RPM

Collet Size | ER20, available diameter of cutter  3.175-12.7mm

Driving Motor | AC servo (Yaskawa or Delta)

Controller | Origin NC studio

Command | G-code

Working Table | Aluminum profile with PVC

Working Holding | By clamp

X Y Transmission | Helical rack and pinion

Z Transmission | Taiwan rolling ball screw

Linear Guide | Hiwin linear guide rail and carrier

Power Supply for machine | AC380V/50 -60Hz, 3Ph 4 Wires

Max. Power Consumption | 25KW

Net Weight | 1800KGS
