Multi Spindle CNC Router for Mass Wood Carving Jobs
Product Name:
Multi Spindle CNC Router for Mass Wood Carving Jobs
No. :
EA-N1525MS6
:
:

Multi spindle cnc router is a model which designed for carving jobs of European style furniture industry. Every woodworker knows, carving jobs is beautiful but time consuming, so if we can engrave more pieces one time, it will increase production largely. Multi heads cnc router is designed for this purpose. Using this machine, you can get 6 pieces carving jobs (max) one time.

To understand well, please see the working video of multi spindle cnc router via this URL:

https://youtu.be/Pk3Lm9PXqWY

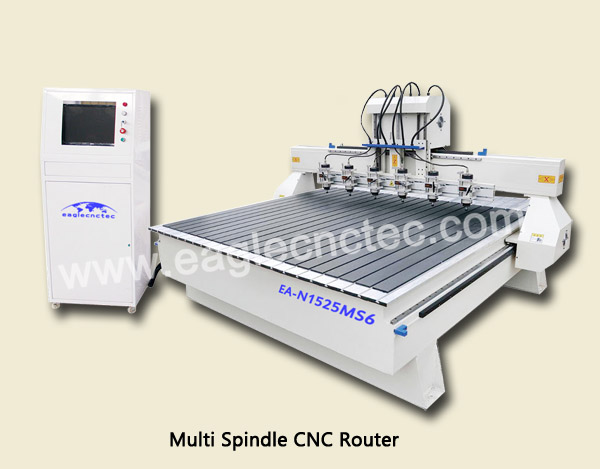

multi spindle cnc router eagletec

Gentle reminder

It’s better to mount water cooling spindles on multi spindle cnc router machine. The reason is below:

a. engraving job is time consuming, water cooling spindle can keep low temperature for longer time compared with air cooling.

b. water cooling spindle is more quiet than air cooling.

But this does not mean it can not mount air cooling spindle. With air cooling spindle, the operator should pay more attention during the machining process. And you are suggested to have a small stop every per six hours because air cooling spindle can not keep on working for more than 6 hours.
multi spindle cnc router wood carving

Application of multi head cnc router

Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Carving jobs for European-style furniture: includes bed, cabinet, table, chair, sofa and etc.

Slotting jobs: Slatwall making

Finished Job of multi spindle wood carving machine
working sample of multi spindle router

Features of six spindle wood router

1) With 6 heads, can get max. 6 pieces jobs one time. If all heads working together, working size of each head is 250 ×2500mm; if using 3 heads only, working size of each will be 500 ×2500mm; if 2 heads together, then each one working size can reach to 750×2500mm.

2) The Z-axis has a dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning.

3) Fast and precise with servo motors, quiet operation. Further the motors are very smooth running and have very good acceleration and deceleration charactics.

4) Frame is welded with seamless steel structure; processed by high temperature

tempering treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 4 legs with adjustable leveling feet.

5) Beam is made of steel. A steel beam is superior to a aluminum in it’s ability to

suppress and absorb the forces created during cutting. It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability.

6) The X and Y axis motion is via a rack and pinion drive, which is hardened for

extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.

7) The Y-axis uses a dual drive, one for each side of the gantry.

8) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc.

9) Has the function of re-carving after break point and power failure.

Technical Parameter

Working Size (X Y Z)            250×2500×200 mm - 6

Driving Motor                        Servo Brand Yaskawa or Delta

Controller                            Origin NC Studio

Command                            G-code

Max.Traveling Speed            45,000 mm/min

Max.Working Speed             15,000 mm/min

Work-Holding                       By clamp

Vacuum Pump                      Without

X Y Transmission                 Helical rack and pinion , HIWIN square linear guide way

Z Transmission                     Taiwan TBI rolling ballscrew , HIWIN square linear guide way

Spindle                                 2.2kw , water cooling, 0-24000 rpm variable speed

Collet Size                            ER20, available diameter of cutter  φ3.175-φ12.7mm

Working Power                     AC 380V/50-60Hz, 3 Ph 4 Wire

Max.Power Consumption      17KW

Net Weight                           1700 KGS

Packing                                Plywood case suitable for sea shipment
